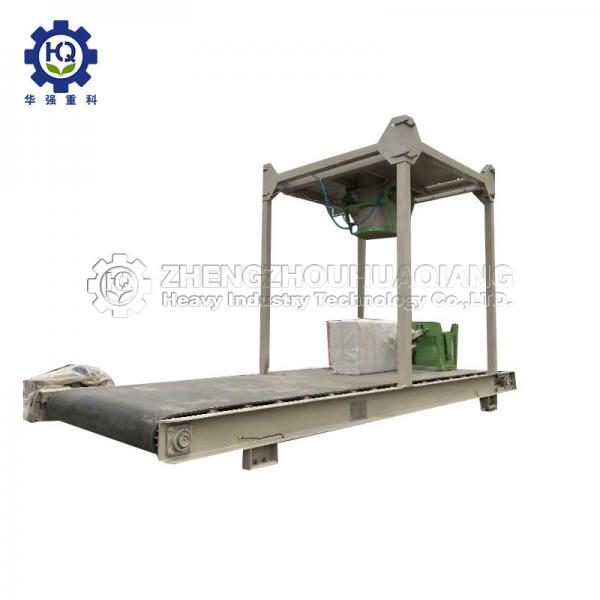

Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
Introduction to Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
Tons bag fertilizer packing machine, also known as big bag packing machine, tons bag packing machine is a multi-purpose packing machine with unique structure and large packing capacity. It integrates weight display, automatic bag removal, dust removal and fault alarm.
Specifications of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
| Packing accuracy | dynamic weighing ¡À0.5% |
| Packing specification | 500-1000kgs/bag |
| Working power supply | Ac380V, 50Hz, 3KW |
| Air source pressure | 5-8Mpa |
| Air consumption | 0.6m3/h Relative humidity: ¡Ü80% |
| the external dimensions | 4200X1600X2800mm |
| Ambient temperature | -10 to 40 ¡ã C |
| Packing speed: | granular 20T / h powder type 15T / h |
| Bag type | all kinds of open bags |
Working principle of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
This tons bag fertilizer packing machine is controlled by computerized instrument and easy to operate & manage. For example, filling bagging 1000kg jumbo bags, you just need to input it 1000kg as the target net weight and place the bag ready to the machine hanger, then the machine will automatic weighing filling 1000kg per bag, then, unloading the filled bag and the matching underling rolling conveyor will transport the filled bags outer for forklift carrying away.
Features of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
1. Bag hanging mechanism. The air cylinder of the hanging bag hook is controlled by the system to shrink and automatically unhook after blanking. No need to manually remove the sling, intelligent design, saving part of the labor.
2. High degree of automation, system control bag clamping, blanking, vibration bag, bag removal, through the touch screen on the control cabinet operation settings. The packing accuracy is ¡À 0.2%.
Advantages of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry Packaging Machine
1. Accuracy: High precision weighing controller, good reliability. Good integrity, small floor area, flexible and convenient installation.
2. Environmental protection operation: Closed inner circulation system, improve the working environment, and protect the health of employees.
3. The structure is compact, the volume is small, and can be made into a fixed or mobile body according to the requirement of the user.
Applications of tons bag fertilizer packing machine
Application scope: suitable for packing granular materials and powder with good fluidity. Such as fertilizer particles, feed particles, chemical powder sulfur, silicon powder, etc.
FAQ
Do you provide installation service after ordering your machines?
As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing,and arrange the engineer guide the user install the machines and help the user train the workers.
