Description

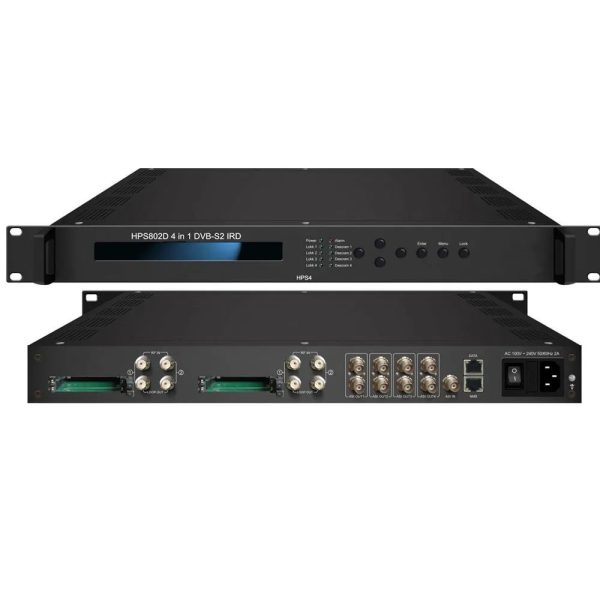

This professional-grade Digital Satellite Receiver integrates a versatile 4-in-1 tuner, making it a powerful solution for receiving and processing signals from various broadcast standards, including cable (DVB-C), terrestrial (DVB-T/T2), and satellite (DVB-S/S2). Designed for commercial and head-end applications, it offers an optional integrated hardware decoder (IRD) with both ASI (Asynchronous Serial Interface) and IP output, allowing flexible signal re-modulation and distribution over IP networks. The unit is equipped with four CAM slots, enabling the simultaneous use of multiple conditional access systems for decryption. It features a comprehensive Electronic Program Guide (EPG), PVR (Personal Video Recorder) functionality via USB storage, and supports various video/audio formats for media playback. Ideal for SMATV systems, hotels, residential complexes, and broadcasting facilities, this receiver provides a reliable and scalable foundation for digital TV services.
Specification
| Category | Specification |
|---|---|
| Product Type | Professional Digital Satellite Receiver / Integrated Receiver Decoder (IRD) |
| Tuner Support | 4-in-1 Tuner: DVB-C, DVB-T/T2, DVB-S/S2 (Optional/Configurable) |
| Decoder (Optional) | Hardware MPEG-2/MPEG-4/H.264/H.265 Decoder |
| Output Interfaces | Video/Audio: HDMI, CVBS (Composite) Signal Distribution: ASI Output, IP Output (Ethernet) Control/Data: RS-232, USB (for PVR/upgrade) |
| Conditional Access | 4 x CAM Slots (Common Interface) for smart cards |
| Ethernet | 10/100 Mbps (for IP output, network services) |
| Features | Electronic Program Guide (EPG), PVR via USB, Timeshift, USB Media Player |
| Power Supply | 100-240V AC, 50/60Hz (Internal Power Supply) |
| Typical Applications | Hotel TV Systems, Apartment MATV/SMATV, Head-end Broadcasting, Cable TV |
Product Features
-
Universal Signal Reception: The integrated 4-in-1 tuner provides maximum flexibility, allowing the reception of signals from satellite, terrestrial, and cable networks with a single device, simplifying system setup.
-
Professional Distribution Ready: With optional hardware decoding and both ASI & IP outputs, it serves as a core head-end device, capable of decoding encrypted channels and redistributing them to modulators or over IP networks for multi-room setups.
-
Multi-Operator Decryption Support: Four CAM slots allow the receiver to work with multiple service providers simultaneously, making it ideal for environments offering channels from different satellite operators or regions.
-
Advanced User & Management Features: Supports a full EPG, schedule recording (PVR) via USB storage, timeshift, and media playback, enhancing the end-user experience and system functionality.
-
Robust & Reliable Design: Built for 24/7 commercial operation, it features stable performance, a wide voltage power supply, and comprehensive connectivity options (HDMI, ASI, IP, RS-232) for integration into professional broadcasting and distribution systems.
