Description

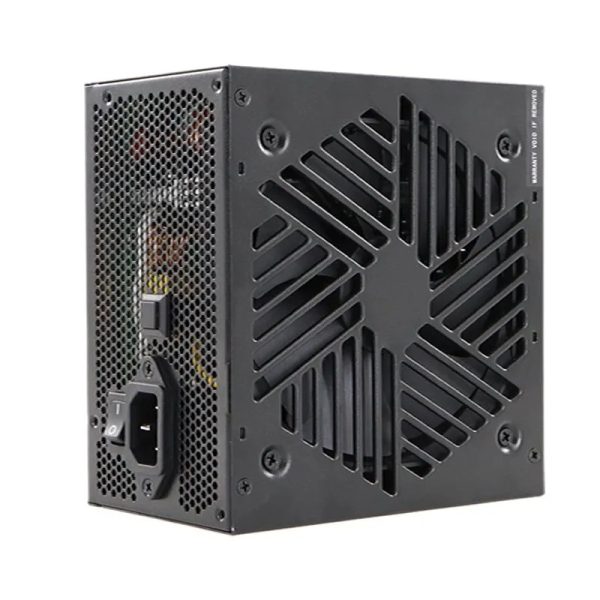

This 1000W ATX power supply is engineered for demanding gaming rigs, high-performance workstations, and enthusiasts seeking reliable power for top-tier components. As an 80 Plus Gold certified unit, it delivers exceptional energy efficiency, converting AC power with over 90% efficiency under typical loads, which translates to lower electricity bills and reduced thermal output. Its fully modular design allows users to connect only the cables they need, significantly improving case airflow and simplifying the building process. A key highlight is the inclusion of a PCIe 5.0 compliant 12VHPWR connector, providing safe and dedicated power to flagship graphics cards such as the NVIDIA GeForce RTX 4090 without the need for adapters. Built with high-quality components including Japanese main capacitors, it ensures stable voltage delivery, longevity, and protection for your valuable PC components against surges, short circuits, and overloads.
Specifications of 1000W ATX 3.0 PC Power Supply
| Category | Specification |
|---|---|
| Model | DR-P1000G |
| Maximum Power | 1000W |
| Efficiency Rating | 80 PLUS Gold (≥90% efficiency at 50% load) |
| Form Factor | ATX (Standard size: 150mm x 140mm x 86mm) |
| Modularity | Fully Modular |
| Main Connector | 24-Pin (20+4) ATX |
| CPU Power | 2 x 8-Pin (4+4) EPS |
| PCIe Power | 6 x 8-Pin (6+2), including 1 x 12VHPWR (12+4 pin) for PCIe 5.0 |
| SATA Power | 10 Connectors |
| Peripheral (Molex) | 4 Connectors |
| Cooling | 140mm Hydraulic Bearing Fan (Intelligent Zero RPM mode under low load) |
| Protections | OVP (Over Voltage), UVP (Under Voltage), OCP (Over Current), OPP (Over Power), SCP (Short Circuit), OTP (Over Temperature) |
| Safety Certifications | CE, FCC, RoHS, TUV |
| Input Voltage | 100-240V AC, 50-60Hz (Full Range Active PFC) |
| Warranty | 5 Years |
Features of 1000W ATX 3.0 PC Power Supply for for RTX 4090
-
Ready for Next-Gen GPUs: Equipped with a dedicated 12VHPWR connector designed to meet the high-power demands of PCIe 5.0 graphics cards like the NVIDIA RTX 4090, ensuring stable and safe power delivery.
-
Premium Efficiency & Reliability: 80 Plus Gold certification guarantees high energy conversion efficiency, reducing heat generation and operating costs. Built with durable Japanese capacitors for enhanced stability and a longer operational lifespan.
-
Optimized Thermal & Acoustic Performance: The large 140mm cooling fan operates quietly at lower speeds and features a Zero RPM mode for silent operation during low to moderate loads, only spinning up when needed for intensive tasks.
-
Clean & Easy Installation: The fully modular cable management system allows you to use only the necessary cables, reducing clutter, improving airflow for better cooling, and making the building and upgrading process straightforward.
-
Comprehensive Circuit Protection: Incorporates a full suite of protections (OVP, UVP, OCP, OPP, SCP, OTP) to safeguard the power supply and connected components from electrical abnormalities, ensuring system safety and durability.
