Pe Heat Shrinkable Packing Machine 220V 5050x3300x210mm

Description

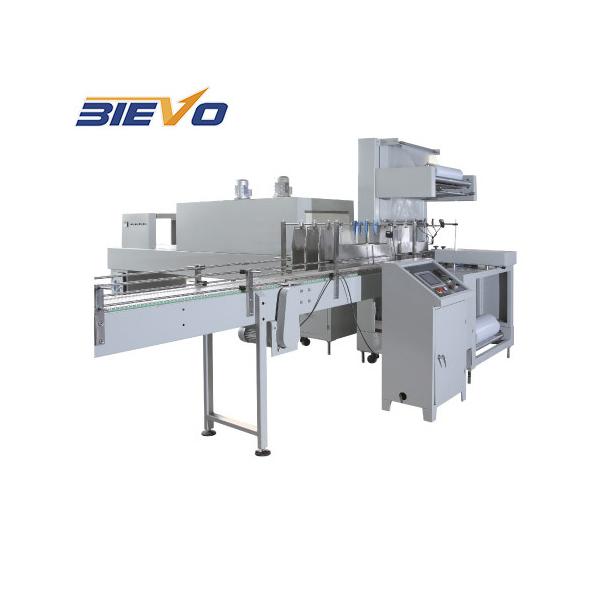

220V 5050x3300x210mm Pe Heat Shrinkable Packaging Machine

Full automatic water polyester bottle PE film heat tunnel shrink packing machine Shrink packing machine

PE film heat shrinkable packing machine
The speed of the conveyor is controlled by the frequency converter. ST-6030+SM-6040S is a simple and economical model of sleeve packing series. It adopts PE film, which is easy to operate. It can be automatically sealed by pressing the button manually.
The BW-6030 uses top class cylinders for stable operation during pushing and sealing. The special design of the sealing blade makes the depth of the sealing line fixed, the pressurization design prevents no shaking, and avoids the film sticking to the tool; The light products can also be adjusted with the advance material rack to ensure perfect packing. Products of different shapes are transported by solid steel rollers, durable silicone tubes and chains

Machine description:
*Bottle entry ¡ú automatic bottle release ¡ú bottle pushing ¡ú hot sealing and cold cutting ¡ú PE pressing ¡ú shrinkage ¡ú cooling.
*The upper and lower magnetic switches prevent incorrect sealing and protect operators.
*The input position can be adjusted according to the size of the packaged product.
*The performance of Schneider PLC, Schneider AC contractor and intelligent temperature controller is stable.
*High power conveying motor, stepless speed regulation, stable feeding.
*The upper and lower high-power fan system ensures the good effect of one-time contraction.
*The super cooling system cools the packing for a perfect shape.
*The tunnel size can be customized according to your products.

Technical Partment
Facility type	BW-150A type
Facility external size	L5050¡ÁW3300¡ÁH2100mm
Wrappage max size	L600¡ÁW400¡ÁH350mm
Shrinkage film size	PE,PVC,POF
Shrinkage thermo thickness	0.03-0.15mm
Thermo shrinkage tunnel temperature	160 - 260¡ãcan adjust at will
Max output per minute	8-12bag
Facility power	18Kw
Actual power	15Kw/hr
Pressure requirement	380/220V
Facility weight	1.2T
Fan machine	1.1Kw 2set 380V, 65W 4set 380V

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, ChinaOur factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.Q2: What's your payment stipulation?A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,we can further discuss.Q3: Do you have technicians for installation?A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.Q4: How about the spare parts?A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
