Description

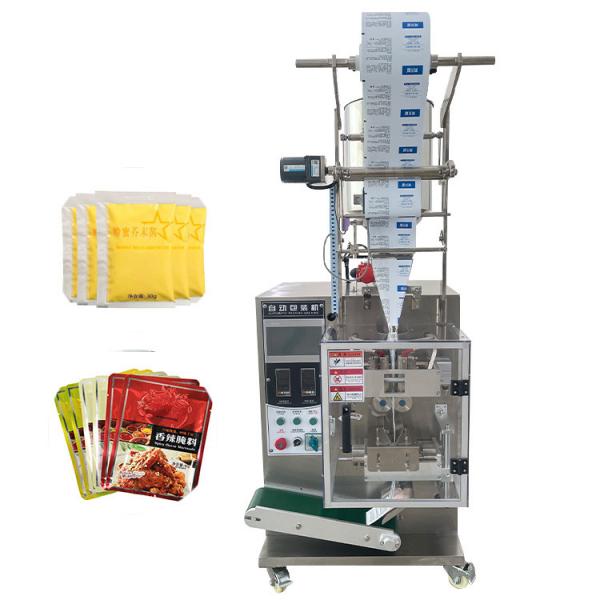

Vertical Packing Machine
A vertical packing machine is a type of packing equipment used in various industries to efficiently package products in bags or pouches. As the name suggests, these machines operate vertically,
with the product fed into the top of the machine and the packing material forming around it as it moves downward through the process.
These machines typically consist of several components, including a product feeder, a film roll holder, a forming tube, a sealing mechanism, and a cutting device.
The product feeder delivers the items to be packaged into the machine, where they are measured and placed into individual pouches formed from a continuous roll of packing material.
The forming tube shapes the pouches, while the sealing mechanism seals the edges of the pouches to enclose the product securely.
Finally, the cutting device separates the filled pouches from the roll, creating individual packages ready for distribution.
Vertical packing machines are versatile and can be used to package a wide range of products, including food items, pharmaceuticals, hardware, and more.
They offer advantages such as high-speed packing, precise portion control, and efficient use of packing materials, making them essential equipment for many manufacturing and packing operations.
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Home Use, Food & Beverage Shops
Application Food, Beverage, Chemical
Packaging Type Bags
Automatic Grade Automatic
Driven Type Electric
Place of Origin Guangdong, China
Weight 275 KG
Warranty 1 Year
Key Selling Points Easy to Operate
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Motor
Condition New
Type Filling Machine
Voltage 380V Dimension(L*W*H) 880*760*1800 mm
Product name Powder Packing Machine
Function filling liquid
Bottle type pouch
Suitable for Fluid Material (alll Liquid Products)
Filling speed Customization
Filling volume 200ml-2000ml
Material Stainless Steel 304/316
After Warranty Service one year support
Advantage Automatic Working
Key words pouch filling
Features
1. The fully automatic liquid packing machine can automatically complete a series of automated procedures such as bag loading, bag making, filling, metering, sealing, bag cutting, counting, coding, output, etc.
2. Stainless steel body, beautiful and simple design.
3. Chinese and English touch screen control system, easy to operate.
4. Imported electrical components, efficient and stable performance.
5. The high-performance precision process sealing mold is matched with the high-quality heating tube for heating and sealing.
6. The sealing pattern is firm and clear, and the sealing pattern can be designed according to customer requirements to improve the overall image of the product.
7. Equipment can be selected according to material characteristics: vacuum suction machine,
coder, inkjet printer, finished product conveyor belt, weight detector, etc.
Packaging film width ≤220mm (can be customized according to actual size)
Bag size: length 40-150mm, width 40-110mm
Sealing type: four-sided sealing (can be customized: back sealing, three-sided sealing, special-shaped bags, etc.)
Sealing texture mesh (can be customized: straight grain, pattern, etc.)
Power supply 220V/380V/50Hz/60Hz/1350W
Machine weight: about 140KG
Packaging materials: composite film/composite paper/polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.
Machine size length, width and height: 1100*804*1890 MM
Besides the vertical packing machine, there are also filling machine, capping machine and labeling machine of our factory.
Contact us to get more information.
Cutting knife type: flat knife (rounded knife, toothed knife can be customized)
Air consumption 0.8Mpa 0.4m3/min
