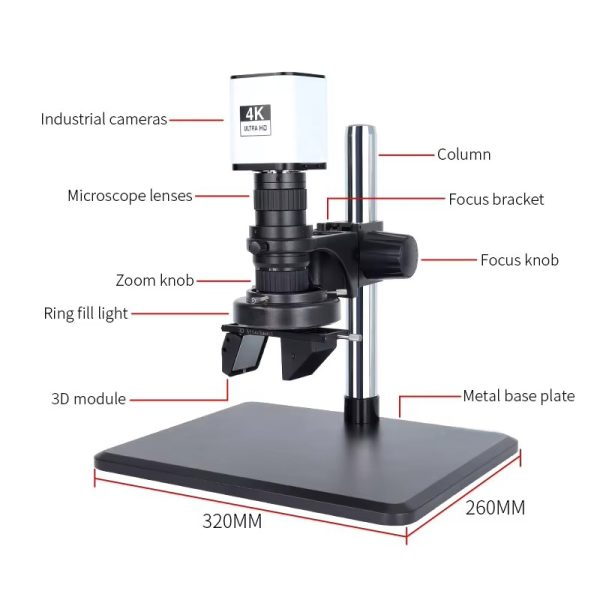

Optical Digital Microscope for Mobile Phone Repair

Description

Engineered to meet the exacting standards of modern electronics repair, this 4K Digital Microscope is an indispensable tool for professionals tackling intricate mobile phone and PCB repairs. It delivers exceptional, ultra-high-definition clarity that brings the smallest solder joints, microscopic components, and hairline circuit traces into sharp, vivid focus, ensuring no flaw goes undetected. The microscope offers superior versatility with dual HDMI and USB output options, allowing for seamless connection to larger monitors for collaborative, real-time inspection or to a computer for effortless video recording, image capture, and detailed documentation of work. Featuring a robust stand for stable, hands-free operation and a wide range of smooth, adjustable magnification, it provides the perfect working distance and steady view critical for precision tasks like micro-soldering and component alignment. By transforming minute details into clear, manageable visuals, this tool significantly reduces eye strain, minimizes errors, and boosts overall workshop efficiency, making it the ultimate visual aid for technicians, repair shop owners, and serious electronic enthusiasts dedicated to quality and precision in every project.

Optical Digital Microscope Technical Parameters

Optical Magnification	0.7x – 5x continuous zoom
Digital Magnification	25x – 230x
Chipset	ARM Dual-Core Architecture
Sensor	1/1.8 Inch
Resolution	3840*2160P@60FPS
Output Interface	HDMI + UVC-USB3.0 High-Speed Output
Lens Interface	C Mount
Power Supply	DC 12V
Pixel Size	2.0μm*2.0μm
External Devices	HD Monitor + Computer
Storage Method	Supports USB flash drive storage and mouse operation
Import function	Supports importing pictures from USB flash drive to camera
Grid Lines	8 Sets of Grid Lines (8 Selectable Colors / 4 Selectable Line Widths)
Basic Functions	Photo Capture, Video Recording, Measurement, Storage
Image Adjustment	Color, Color Temperature, White Balance, Exposure

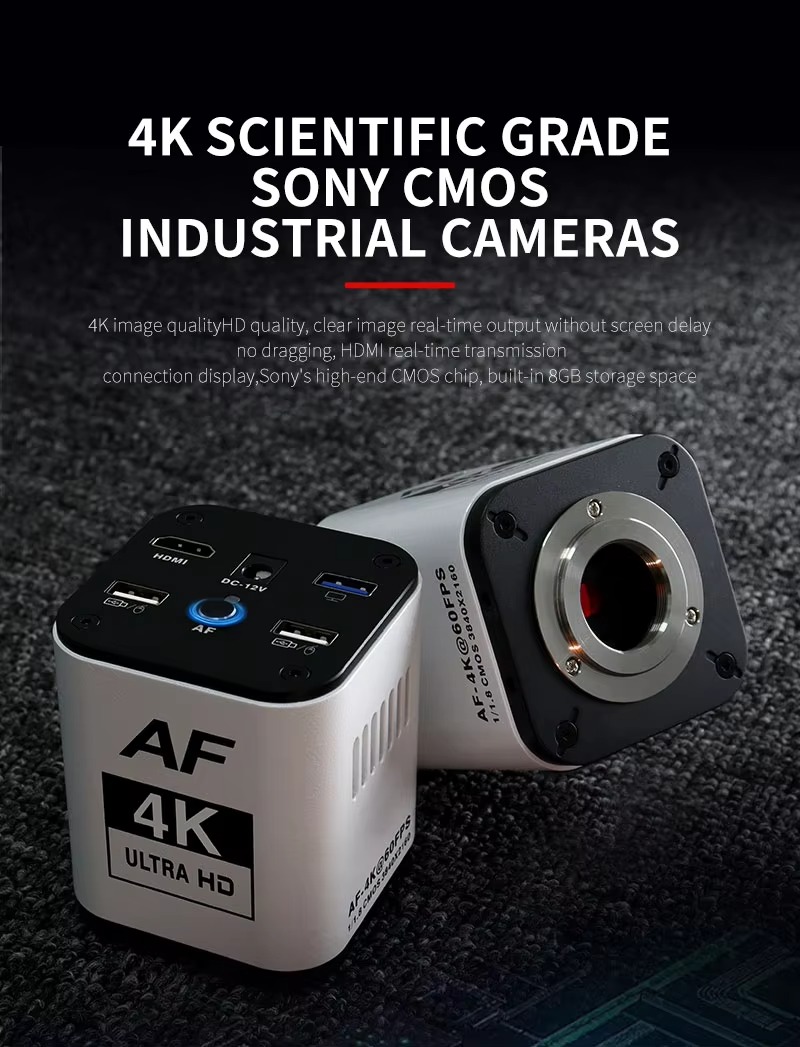

Camera Features	AF Auto Focus, Frame Freeze, Auto Exposure, White Balance, Partial Zoom, HDR Wide Dynamic Range, Image Preview, Digital Zoom In/Out, Dual/Quad Split-Screen Comparison
Illumination Method	56 LEDs ring light illumination
Menu Language	Simplified Chinese, Traditional Chinese, English

Applications of Optical Digital Microscope

• Electronics Repair & PCB Inspection: Essential for soldering, diagnosing faults, and inspecting micro-components on circuit boards, especially in mobile phone and computer repair.

• Industrial Quality Control & Manufacturing: Used for examining surface finishes, weld quality, material defects, and performing precise dimensional measurements on small parts.

• Scientific Research & Laboratory Analysis: Enables detailed observation, documentation, and digital archiving of biological specimens, material samples, and geological sections.

• Forensics & Evidence Examination: Aids in the close analysis of trace evidence, including fibers, fingerprints, tool marks, and document authenticity.

• Precision Crafting & Assembly: Vital in fields like watchmaking, jewelry repair, and micro-engineering for intricate assembly, engraving, and quality inspection.

• Education & Training: Facilitates group learning and instruction by displaying magnified images on a large screen or monitor for classrooms and workshops.

• Art Restoration & Conservation: Allows conservators to examine paint layers, cracks, and material decay in artworks and historical artifacts with non-invasive detail.

• Medical & Dermatological Use: Employed in certain clinical settings for skin analysis, hair follicle examination, and minor surgical procedures.
