Description

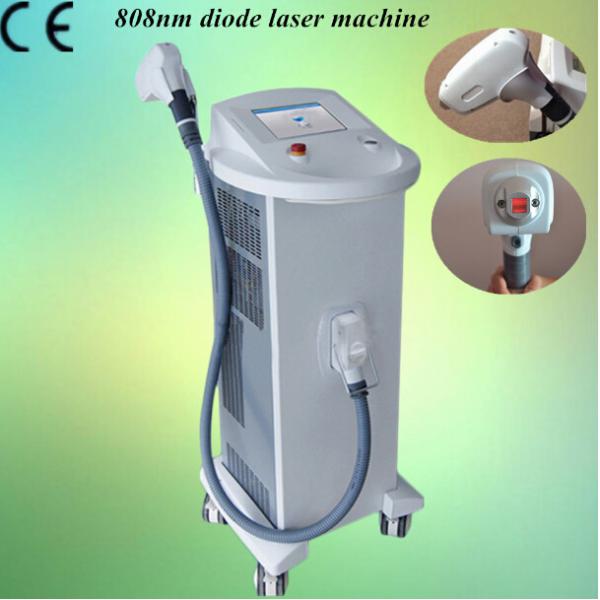

Medical 808nm Diode Laser Hair Removal Machine
- Light sourcesDiode laser
- Laser wavelength808nm
- Spot size12mm*12mm
- OutputSapphire coupling
- Net weight52kg
- Physical dimension of package580mm*575mm*1155mm
Mejire 808nm Diode Laser System, use very special laser with long pulse width 808nm, can penetrate to hair follicle, using selective light absorption theory, laser can be preferentially absorbed by the melanin of the hair and then heating the hair shaft and hair follicle, moreover to destroy the hair follicle and oxygen organization around hair follicle. When laser outputs, system with special cooling technology to cool the skin and protect skin from being hurt and reach a very safe and comfortable treatment.
Efficiency:
808 nm is in the spectrum of near-infrared (0.75~1.50 ¦Ìm) region, effective to absorb melanin and goes through dermis to reach to adipose tissue, acting on different area and depth of hair. Excellent treatment result can be expected at the first treatment and suitable to all types of hair.
Virtually Painless:
*Safely and gently heating the dermis to a temperature that damages the hair follicle and prevents re-growth, yet does not injure the surrounding skin.
*The Cooling Sapphire Dual-Chill Tip designed to protect the outer layer of skin by decreasing the surface temperature and preventing thermal injury from the laser beam.
Applications :
Hair removal / Skin tightening/Skin rejuvenation
1. Permanent Hair Reduction on all pigmented hair and all skin types¡ªincluding tanned skin.
2. Pain-Free, Hair-Free - Comfortable Hair Removal
3. Fast removing any kind and color hair permanently.
4. Skin rejuvenation and skin tightening
Advantages :
1. Virtually pain-free contacted with sapphire of Real -5¡ãC more incomparable comfortable, and safety;
2. High laser output stability with optimized diode laser.
3. Fast Hair removal in on-motion way - huge 12mm£ª12mm spot, up to 10 Hz repetition rate.
4. Large touch color screen with advanced intuitive and easy human-computer interaction software.
5. Breakthrough patented comprehensive self-detection system with more than 50 realtime online detection key-points, ensures fault-prevention, minimizes treatment risk.
6. Dual hair removal mode of traditional (HR) mode and on-motion (FHR) mode.
7. High output laser energy density, up to 120J/cm2 in traditional mode(HR), up to 25J/cm2 in on-motion (FHR) model
8. More effective and comfortable with unique Dual-Pulse Shot technology.
9. No transfer limitation any more with micro-channel water cooling system, which is more environmental avoiding Freon but quality ensured.¡ö Detailed Pictures3 kinds of modes-------HR/SHR/SR
Handheld connectors----easier to install
Push-button start---------no need keys
Emergency stop switch--more safely
Convenient storage box
Self-check system
¡ö Technical Data
| Item | Specification |
| Light sources | Diode laser |
| Laser type | Single-pulse laser and Dual-pulse laser |
| Laser wavelength | 808nm |
| Work mode | FHR (on-motion) |
| HR(Traditional) | |
| SR Mode(New design) | |
| Spot size | 12mm*12mm |
| Energy Density | Up to 120J/cm2(HR mode) |
| Up to 25J/cm2(FHR mode) | |
| Output | Sapphire coupling |
| Cooling | Contacting cooling |
| Rated input power | AC230V¡À10%,15A 60/50Hz AC110V¡À10%,60Hz;(Optional) |
| Net weight | 52kg |
| Physical dimension of package | 580mm*575mm*1155mm |
