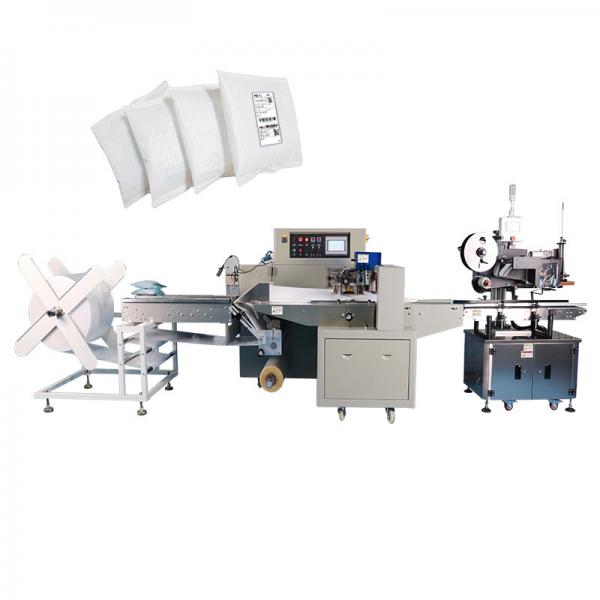

Impact Resistant Bubble Wrap Film Packing Machine Labelling All In One Machine

Views: 93 | Orders: 0

US:Negotiate/Piece

Brand Name:Sayok

Certification:CE

Model Number:SN-450QX

Minimum Order Quantity:1 set

Delivery Time:15 working days

Payment Terms:T/T

Description


Automatic bubble wrap packing machine with real time online courier leaflet strapping intelligent all-in-one machine


Feature:

1. 3 servo motors, precise packing film feeding, film saving.

2. Human-machine interface operation, easy and fast parameter setting.

3. Self-diagnostic fault function with clear fault display.

4. Individual PID control for temperature, suitable for various packing materials.

5. All controls are realized by software, convenient for function adjustment and upgrade.

6.Optional labelling machine for automatic labelling.


Quickly Details


1. equipped with big brand servo motors;

2. all core components are branded high quality components;

3. Simple drive system, reliable work and easy maintenance.

4. 1m feeding conveyor for more stable machine;

5. optional sealing direction as horizontal or vertical;

6. optional real time label printing and posting.


Scope of application:


Different options for bag types & materials
This machine is suitable for all kinds of express pearl cotton foam rolled film packing such as food, hardware, daily necessities, digital electronics, books and electronics and other express packing


Specifications:


Model

SN-350XQ/450XQ/600XQ/800XQ

Packing Film

Air Bubble Film

Film widthMax.350mm
Packing Speed

60-330bags/min(depends on product)

Power Supply

220v 50/60hz 2.6kw

Film roll diameterMax. 1200mm

Machine size

4020*770*1450mm
Feeder4120*870*1550mm
Machine Weght

Approx 580kg


Product¡¯s heightMax.65mm
Bag width

50-160mm/50-180mm/100-280mm/100-380mm

Bag length65-190/90-280mm 90-220mm/120-330mm

Degree of automationAutomatic
Processing customizationCustomized processing is available
Material TypeSolids
Applicable objectsrestaurants, daily chemicals,pharmaceuticals, hardware, machinery

Machine Details:


1. Packaging machine appearance

It can realize the one-step process of material release, packing and sealing and cutting

2.Large roll bubble film device
Large rolls of bubble film or PE film, no need to often replace the packing film, the size of the size according to the product.

3. Labelling of the courier slip area
Automatic identification, saving manual labelling costs and avoiding the possibility of manual labelling errors

4. Bilingual touch screen control
Large touch screen control for easy and precise control of key parameters such as packing speed and packing temperature

5. Hot pressed centre seal zone
Independent PID temperature control, heated bilateral turntable sealing, sealing the package to ensure a tight seal

6. Widely use in food, electric, toys, daily use, books, hardwares etc products' protective wrapping
