Description

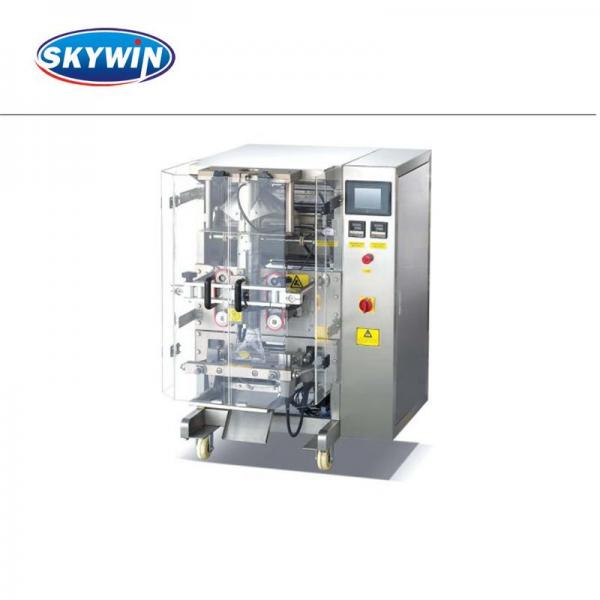

CE Automatic Vertical Packaging Machine Animal Biscuits And Sweet Candy Packaging Machine
Product Description
Automatic Granular Vertical weighing & packing machine Unit is specially designed for granular material packing.Basically the machine unit equips with Linear weighing machine or Multi-head weighing machine to pack different kinds of granular,Widely used in the area of Biscuits, Cookies, Bear Biscuits,seeds,roasted food,granular pesticides,rice,grain legumes and bulk materials packing.
Advanced Technology
Technical characteristics:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to¡À1¡ãC.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
Technical parameters:
Type | SKY-520 |
Bag length | 80-350mm(L) |
Bag width | 60-250mm(W) |
Max width of roll film | 520mm |
Packing speed | 10-120bags/min |
Measuring range | 3000ml |
Air consumption | 0.65mpa |
Gas consumption | 0.4m3/min |
Power voltage | 220V/50HZ |
Power | 3KW |
Dimension | (L)1500*(W)1270*(H)1600mm |
Deadweight of machine | 800Kg |
Weigher Technical characteristics:
1.Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
2.High precision data-type weighing sensor realizes precise weighing.
3.Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4.IP65 grade water-proof and dust-proof design.
Technical parameters:
Type | SK-14 |
Measure number | 14 |
Range of single weighing | 10-1000g |
Quantity precision | 0.1-1.5g |
Average tolerance of single bag | 0.2-0.7g |
Weighing speed | 50-120bags/min |
Hopper capacity | 1300ml |
Hopper type | Double hoppers without memory |
Preliminary programs | 99kinds |
Net/gross | 300/370Kg |
Overall size | 1140mm(L)¡Á1210mm(W)¡Á1680mm(H) |
Biscuit packing machine
Working Plat Form
stainless steel viberator feeder
304 stainless steel Vertical Packing Machine Main Machine, perfect pulling and sealing pillow bags.
Stainless Steel Working Platform Biscuit packing machine
Stainless Steel Biscuit Feeder Conveyorbiscuit packing machine
AccessoriesMachine component:
Chinese famous quality brand motor & gearbox, SEW for Optional.
SKF bearings/NSK bearings
SMC Penumatic cylinder for belt tension and deflecting adjustment
304 Stainless steel cover, thickness 1.5-2.0mm, The part Contact Food are 304 SUS, Or Food grade.
SIEMENS or Schneider transducer electric and PLC touch screen control.
Schneider Brand Swicthes and Electricity Components.
Guarantee for 1 year along with recommended spare parts for 1 year.
