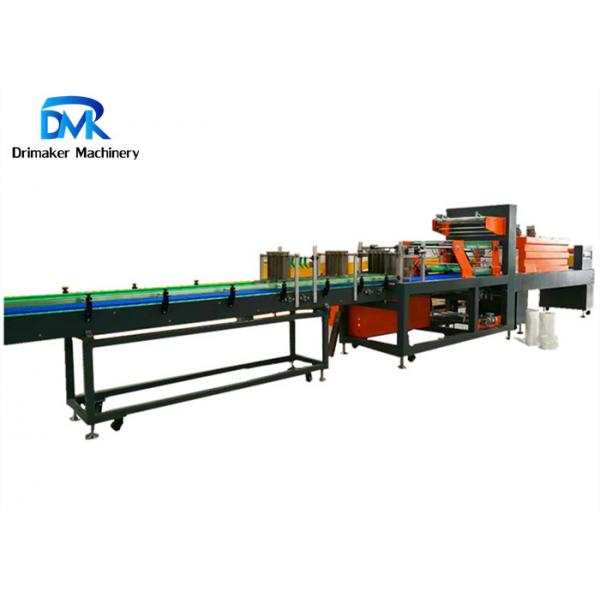

Auto Heat Shrink Tunnel Packing Machine For Beverage Flat Bottle

Description

Auto Heat Tunnel Shrink Wrapping Bottle Packing Machine For Beverage Flat Bottle

Shrink packing machine description:

Heat shrinkable packing machine is based on the packing film heat shrinkage and the design and manufacture according to the features of high efficiency, continuous operation, a new packing equipment, it can be a single PET bottles or other similar items automatically arrangement, collection group, then use shrink film to package, finally through heat shrinkage, cooling stereotypes formed assembly packing, packing products after binding and firm, appearance neat, beautiful, open and convenient. Therefore, it is widely used in food, pharmaceutical, chemical and other light industrial products industries.

Shrink packing machine features:

1) automatic shrinkage and cutting temperature control, and can be changed according to the need.

2) thermostatic sealing and cutting knife, surface spraying teflon, smooth and firm incision.

3) programmable logic controller (PLC) control.

4) touch screen operation, friendly interface, convenient man-machine communication and control.

5) no backing packing, suitable for different bottle sizes and different combinations of packing.

6) simple operation and convenient maintenance.

Shrink packing machine parameters:

Shrink packing machine principle:

The bottle or box to be packed shall reach the bottle stop plate along the channel formed by the bottle feeding mechanism. The signal is given by the photoelectric detection head on the upper part, the front bottle feeder stops, the bottle baffle plate moves back to release the stress caused by the bottle feeding extrusion. The dividing plate drops and the separating plate drops to separate the packing bottle from the waiting bottle. The push bottle mechanism works forward so that the packing bottle is along the guide bottle mechanism together with the film. Reach the sealing and cutting position together, and at the same time, push the packing bottle which has finished the coating in the previous time into the conveyor belt in the thermal shrinkage equipment, at this time, the film feeding mechanism also works at the same time. Then the pressure film cylinder moves down to press the film, and then the hot seal cutter moves up to complete the sealing and cutting function. The packing bottles that are pushed into the high-temperature conveyor belt complete the thermal shrinkage function in the thermal shrinkage equipment while moving forward, and finally reach the finished product bearing device after cooling and contraction by cold air. This process is repeated continuously to achieve packing automation.

In addition to the conveying mechanism, all the above processes are controlled by PLC program under the action of compressed air cylinder.
