Description

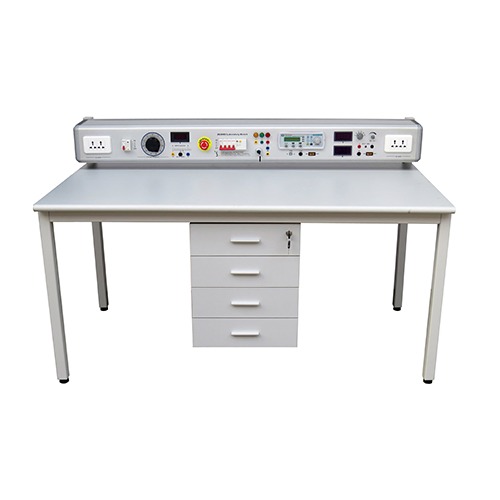

The ZE3204 Electronic Laboratory Workbench is a professional-grade vocational education and teaching equipment designed to provide comprehensive, hands-on training in electronics and microcontroller technology. Its core is an 8051 single-chip microcomputer minimum system, compatible with AT and STC series DIP40 chips, which are easily replaceable. All I/O ports are accessible, allowing the unit to function as a standalone trainer or integrate with multifunctional development experiment boxes. Ideal for curricula in electronic technology, this workbench enables students to conduct a wide range of experiments, building critical practical skills for careers in engineering and technology. It is a robust, reliable platform for educational institutions, including higher vocational colleges, secondary vocational schools, and technical training centers.
Specification of Advanced Electronic Laboratory Workbench for Education
| Category | Specification |
|---|---|
| Model Number | ZE3204 |
| Brand | Should Shine |
| Power Supply | 220V/50Hz, Three-Phase, Five Wires |
| Input Power | AC380V ±10% |
| Dimensions (Workbench) | 1500mm x 800mm x 1100mm |
| Machine Capacity | < 1.5 KVA |
| Weight | ~200 kg |
| Shipping Dimension | 0.5 CBM |
| Core Feature | 8051 MCU System (AT/STC DIP40 Series) |
| Customization | Available |
| Warranty | 1 Year |
| Condition | New |
| Certification | ISO9001 |
| Delivery Time | 30 Days (upon payment) |
| Transport Package | Wooden Pallet |
Features of Electronic Laboratory Workbench
-
Dual-Chip Compatibility: The core system supports both AT and STC series 51 microcontrollers in a DIP40 socket, facilitating easy chip replacement and a broad learning scope.
-
Comprehensive I/O Access: All microcontroller I/O ports are fully led out to two sets of connectors, enabling direct connection to extension modules and standalone experimentation.
-
Integrated Vocational Training Platform: Combines power electronics, basic electronic components, and a microcontroller development environment in one cohesive workstation.
-
Robust & Safe Design: Built with industrial-grade components, featuring clear safety measures and a structured layout suitable for laboratory environments.
-
Curriculum-Aligned: Specifically designed to meet the teaching requirements of electronic technology syllabi for vocational and higher education.
-
Hands-On Learning: Encourages practical experimentation and skill development through a modular and accessible design.
-
Global Support: Backed by supplier services including customization, OEM options, and a dedicated 7*24 support system.
