Description

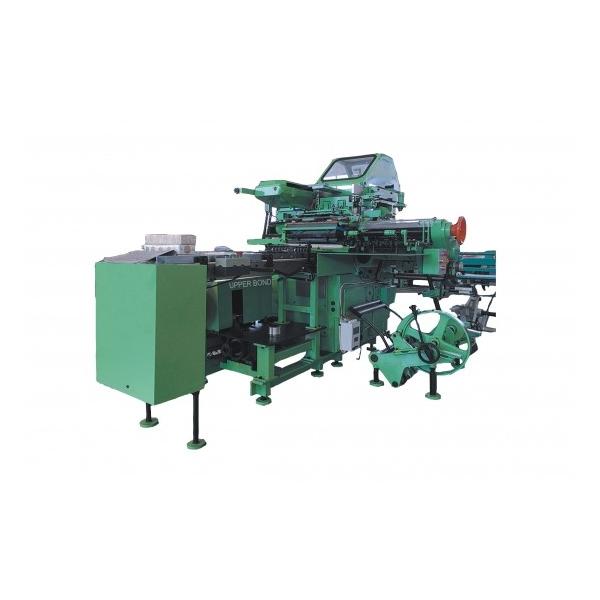

25 Cartons / min YB95 Overwrapped Exquisite Packaging Machine
FEATURES:
YB95 over wrapper exquisite packing machine (Abbreviation:YB95) is remolded from Italy prototype GDX1-4350CV. With little reformation is the overall configuration, YB95 applies brand new dedicated designed parts of over 80 in type which makes YB95 greatly fit into packing requirements (along with cigarette carton transfer device, Power station, Exclusive electricity control system).
The manually cigarette feeding system is totally developed on our own as a brand new feature. The major purpose is to add previous test-failed carton or out-of -shape handmade carton manually into the transferring tape which will lead to qualified product outcome over wrapper packing.
FINISHED GOODS:
TECHNICAL PARAMETERS:
Rated Capacity | 25 cartons/min |
Transfer Tape Power | 0.37 KW |
Main Motor Power | 1.5 KW |
Output Maximum Speed | 140rpm |
Output Minimum Speed | 64rpm |
